Металлический пластинчатый теплообменник передает тепло между жидкостями с помощью гофрированных металлических пластин для эффективного теплообмена.
Оплата:
TT L/C PayPal Westunion MoneygramПроисхождение продукта:
China， Anhui provinceСудоходная порт:
ShanghaiВремя выполнения:
1 MonthМогил:
1Упаковка:
Wooden caseЦвет:
CustomziedМатериал:
Metal
Product review

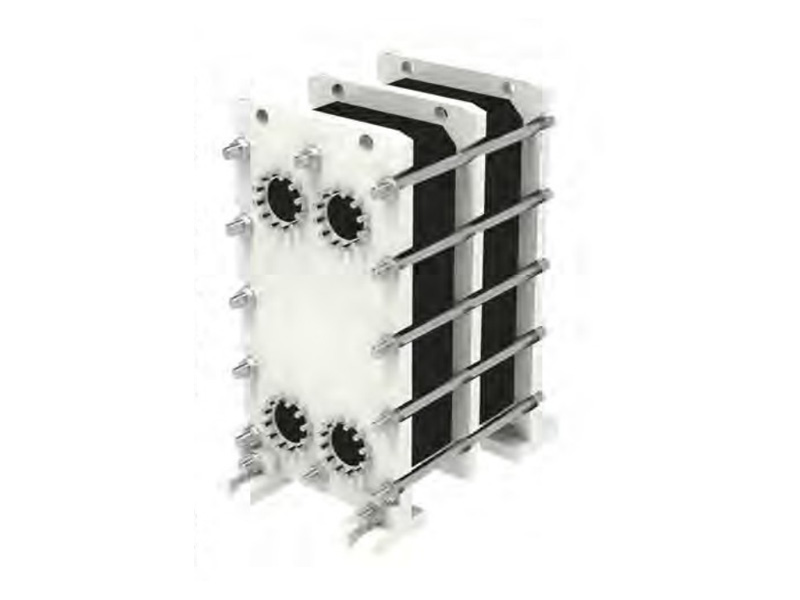

The BKH plate heat exchanger is a type of heat exchange equipment consisting of a set of corrugated meta-plates. These plates have four corner holes, which enable two types of cold and heat media for heat exchange to pass through. It is a detachable plate heat exchanger, made up of plates, bolts, clamping plates, flanges, floor corners, and sealing gaskets.
Product advantages
The BKH plate heat exchanger consists of a heat transfer corrugated plate and a frame. The plates are clamped between the fixed pressing plate and the movable pressing plate with the help of bolts. Numerous flow channels are formed within the heat exchanger, and the plates are sealed using rubber.The pressure plate is equipped with connecting pipes that link the equipment to the exterior. The plate is made of a corrosion-resistant metal sheet. The four corners of the plate are punched with corner holes, which serve as the inlets and outlets for the medium. Additionally, there are hanging holes at the top and bottom.The herringbone ripple pattern can enhance the disturbance of the fluid, enabling the fluid to reach a turbulent state even at a low speed, thereby achieving a high heat transfer effect. A special structure is employed to ensure that there will be no leakage between the two fluid media.
Structural diagram
Equipment parameter table
| Model | Pipe Size mm | Max assembly area m² | Max processing capacity m³/h | Single Max weight Kg |
| BKH07 | 32 | 7 | 20 | 105 |
| BKH15 | 65 | 30 | 70 | 400 |
| BKH25 | 65 | 25 | 80 | 830 |
| BKH35 | 100 | 50 | 200 | 1200 |
| BKH36 | 125 | 60 | 250 | 1250 |
| BKH55 | 200 | 180 | 400 | 1640 |
| BKH60 | 150 | 180 | 650 | 3500 |
| BKH100 | 200 | 300 | 800 | 3500 |
| BKH160 | 300 | 800 | 2300 | 4773 |
